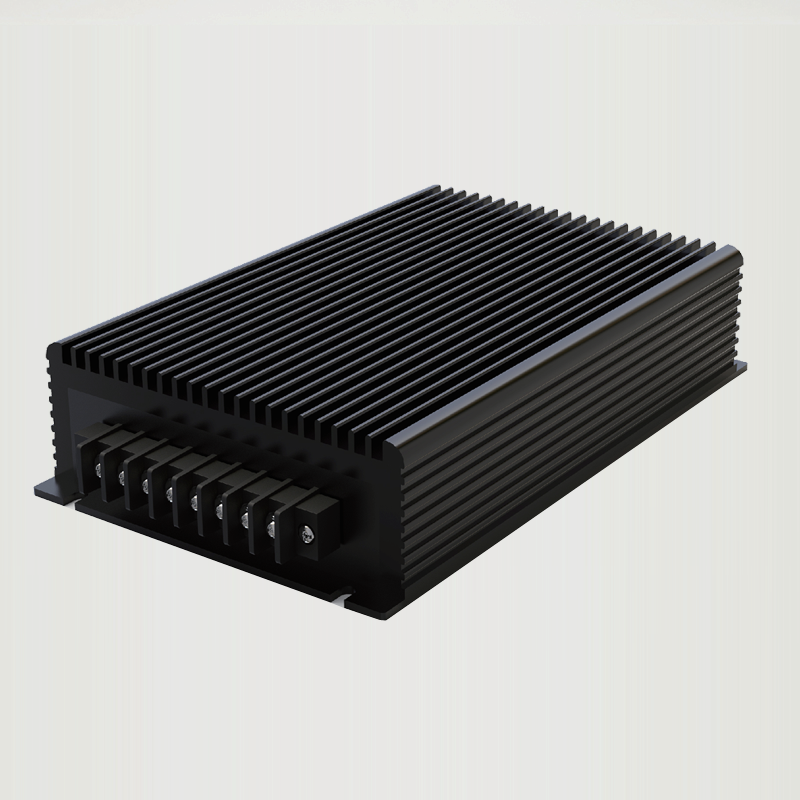

Features :
◆ Broadband noise filter of input
◆ Surge suppress circuit of input
◆ Comply with UL1950, IEC950 safety regulation
◆ Attractive outline design
◆ Terminal connection method
◆ Good heat dissipation
Condition: All specifications are tested under the room temperature 25℃ , Normal input voltage and Pure Negative Normal Load.
Input Characteristic：
Voltage Range: 220 VAC Rated value 176-264 VAC
Output Characteristic：
| Voltage Set-point Accuracy | ±2% |
| Line Regulation<main> | ±0.5% |
| Load Regulation<main> | ±0.5% |
| Output Current Limiting | 120%(Typ) |
| Output Current | 3-60A for option |
| Output voltage | 5-48V |
| Power | 200-300w |
General Characteristic：
| Switching Frequency | 100 - 200 KHz | ||
| Isolation Resitstance | 200 MΩ | ||
| Insulation strength | Input-Output | >1500VAC/1min (Leakage current<5mA) | |
| Input-Case | >1500VAC/1min (Leakage current<5mA) | ||
| Output-Case | >500 VDC/1min | ||
| Main-Vice | >500 VDC/1min | ||
| Environmental Characteristics | Case Temperature | Industry | -25 - +85℃ |
| Military I | -40 - +85℃ | ||
| Military II | -55 - +85℃ | ||
| Storage Temperature | Industry | -45 - +105℃ | |
| Military | -55 - +105℃ | ||
Protective Characteristic：
1、Input under voltage protection
2、Output short circuit protection
3、Over temperature protection
4、Output over current protection
Models:
| Vac Input voltage | Vac Input voltage<Range> | Vdc Output voltage | A Output current | pk-pkmv Ripple and noise | Efficiency | Models | |
| SING | 220 | 176-264 | 05 | 60 | 200 | 85% | MAF300-220S05 |
| 220 | 176-264 | 12 | 25 | 120 | 86% | MAF300-220S12 | |
| 220 | 176-264 | 24 | 12.5 | 200 | 87% | MAF300-220S24 | |
| 220 | 176-264 | 48 | 6.25 | 300 | 88% | MAF300-220S48 | |
| DOU | 220 | 176-264 | 05&24 | 15&8 | 100&200 | 81% | MAF300-220D12&24 |
| 220 | 176-264 | 12&24 | 8.3&8.3 | 120&200 | 83% | MAF275-220D05&24 | |
| 220 | 176-264 | 12&19 | 8.3&10.5 | 120&190 | 83% | MAF300-220D12&19 | |

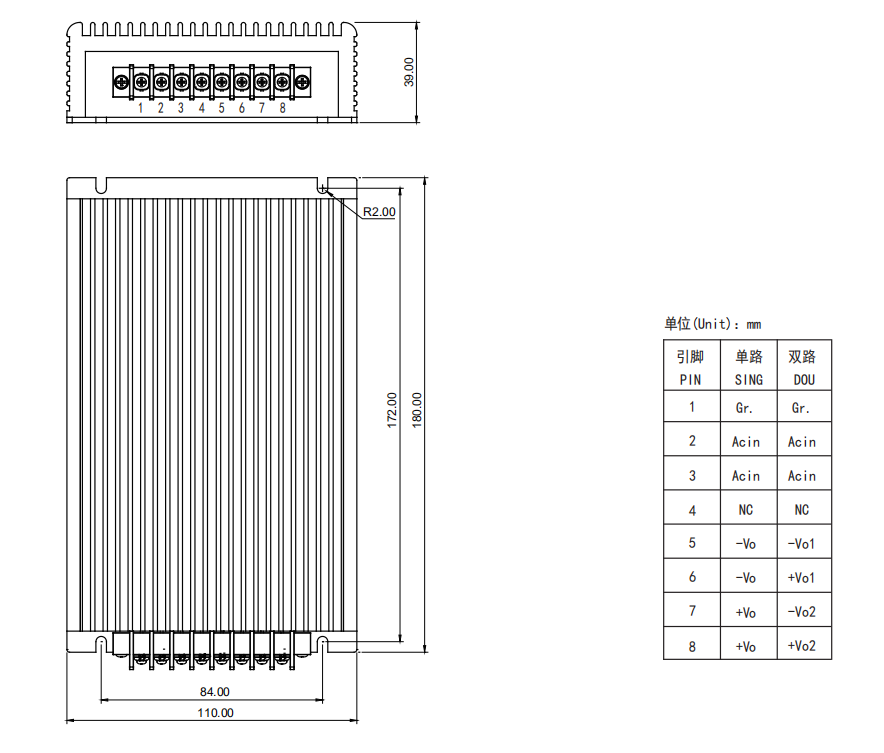

Mechanical drawing and pin definition：
