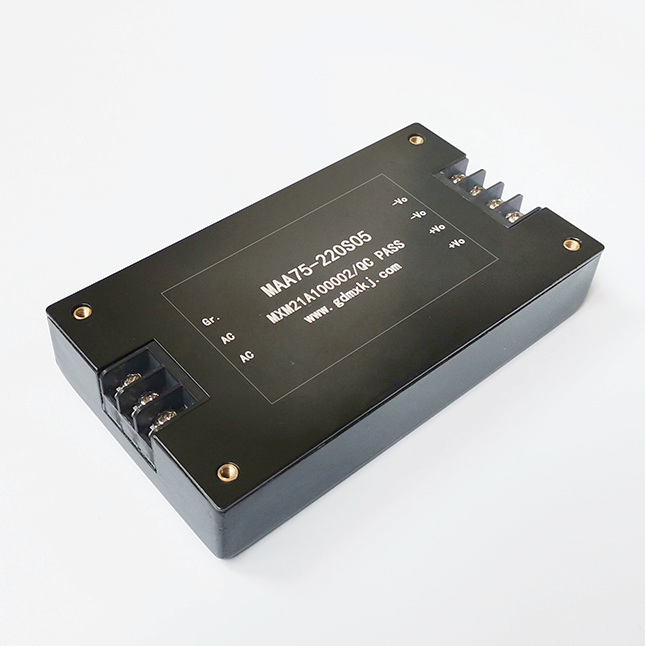

Features :
◆ Broadband noise filter of input
◆ Surge suppress circuit of input
◆ Comply with UL1950, IEC950 safety regulation
◆ Attractive outline design
◆ Terminal connection method
Condition: All specifications are tested under the room temperature 25℃ , Normal input voltage and Pure Negative Normal Load.
Input Characteristic：
Voltage Range: 220 VAC Rated value 176-264 VAC
Output Characteristic：
| Voltage Set-point Accuracy | ±2% |
| Line Regulation<main> | ±0.5% |
| Load Regulation<main> | ±0.5% |
| Output Current Limiting | 120%(Typ) |
| Output Current | 2-15A for option |
| Output voltage | 5-48V |
| Power | 30-100w |
General Characteristic：
| Switching Frequency | 100 - 200 KHz | ||
| Isolation Resitstance | 200 MΩ | ||
| Isolation Voltage | Input-Output | >1500VAC/1min ( leakage current<5mA) | |
| Input-Case | >1500VAC/1min ( leakage current<5mA) | ||
| Output-Case | >500 VDC/1min | ||
| Main-Vice | >500 VDC/1min | ||
| Environmental Characteristics | Case Temperature | Industry | -25 - +85℃ |
| Military I | -40 - +85℃ | ||
| Military II | -55 - +85℃ | ||
| Storage Temperature | Industry | -45 - +105℃ | |
| Military | -55 - +105℃ | ||
Protective Characteristic：
1、Input under voltage protection
2、Output short circuit protection
3、Over temperature protection
4、Output over current protection
Models：
| Vac Input voltage | Vac Input voltage<Range> | Vdc Output voltage | A Output current | pk-pkmv Ripple and noise | Efficiency | Models | |
| SING | 220 | 176-264 | 05 | 15 | 80 | 83% | MAA75-220S05 |
| 220 | 176-264 | 12 | 8.3 | 120 | 84% | MAA100-220S12 | |
| 220 | 176-264 | 24 | 4.16 | 200 | 85% | MAA100-220S24 | |
| 220 | 176-264 | 48 | 2 | 300 | 85% | MAA100-220S48 | |
| DOU | 220 | 176-264 | 05&12 | 3/1.25 | 50&120 | 83% | MAA30-220D05&12 |

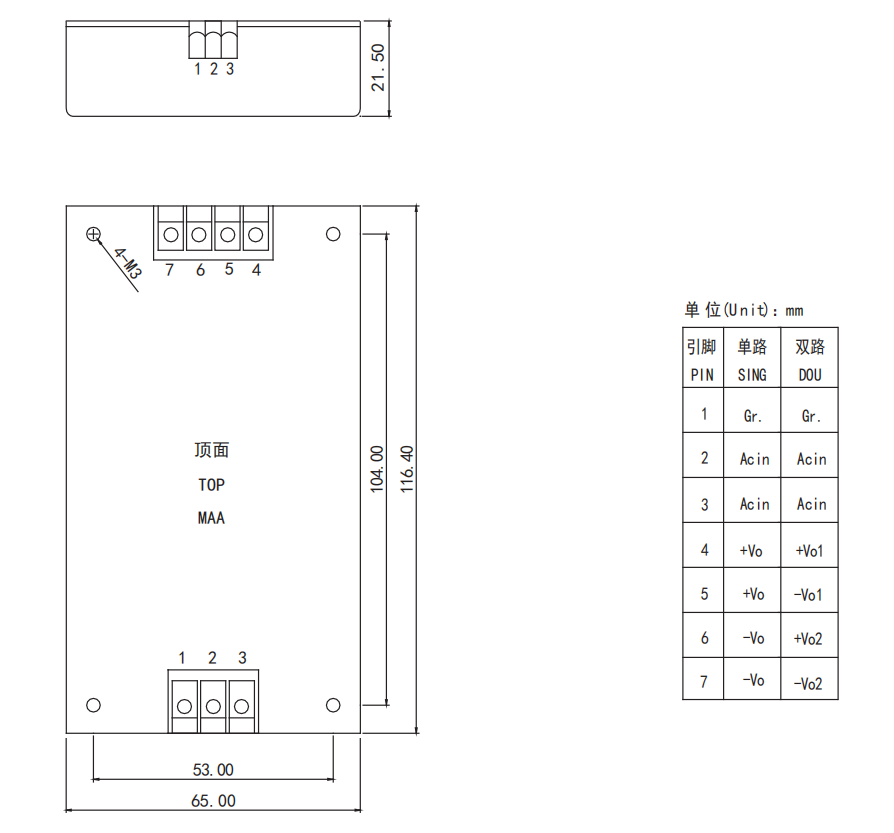

Mechanical drawing and pin definition：
